Capabilities

High Pressure Die Casting

Aluminium HPDC on machines from 250 to 725 tonnes, for higher-volume production with tight, repeatable tolerances.

6kg
Max part weight
250–725t
Machine range
Aluminium
Alloy
ISO 9001
Certified

Built for volume, without losing precision

  • High pressure die casting in aluminium
  • Machines ranging from 250 tonnes up to 725 tonnes
  • Castings up to 6kg finished weight
  • Full batch traceability from ingot to finished part
  • In-house CNC machining to take parts to a finished state

High pressure die casting is our highest-volume process, forcing molten aluminium into a steel die under significant pressure. It's suited to parts that need tight tolerances and a consistent, repeatable finish run after run.

Our press range means we can take on smaller, multi cavity tooling, for precision components through to large castings for LED lighting, oil and gas and electronics sectors. With our own CNC shop on hand to machine parts to a finished, assembly-ready state without leaving the building, we are able to monitor and maintain quality throughout the production run.

HPDC Parts We've Produced

High pressure die cast aluminium bracket component
High pressure die cast multi-cavity aluminium housing
High pressure die cast aluminium enclosure, underside detail
High pressure die cast aluminium tray component
High pressure die cast aluminium housing with circular aperture
High pressure die cast tee-fitting component, powder coated
High pressure die cast aluminium enclosure with connector bosses
High pressure die cast aluminium manifold block

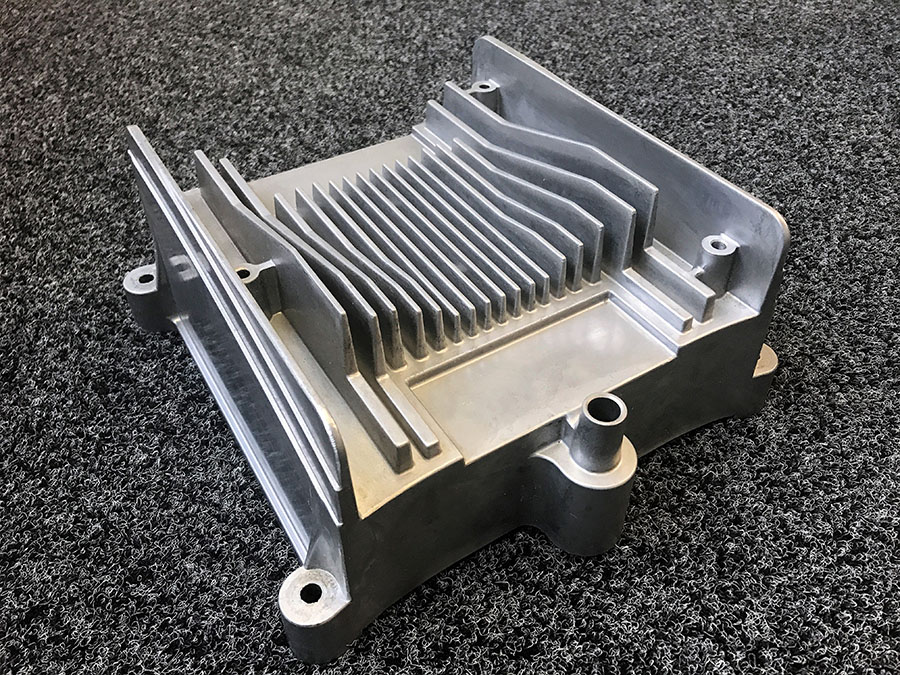

High pressure die cast aluminium heatsink component
High pressure die cast enclosure, powder coated black
High pressure die cast finned enclosure with connector, powder coated
High pressure die cast aluminium heatsink, angled view

How an HPDC project runs

01

Design review

We check the part for castability and suggest changes that keep cost and quality in balance.

02

Tooling

Dies are designed and built in-house, matched to your press and part geometry.

03

Casting

High pressure casting with full batch traceability from ingot to finished part.

04

Machining & QC

CNC machining, pressure testing and inspection bring the part to spec.

Where HPDC parts end up

Telecoms
Electronics
Safety-critical Zone 1 lighting
Ministry of Defence
Oil & gas

Quality You Can Rely On

Full batch traceability and barcode-scanned route cards, backed by a robust system built for the paper trail hazardous castings require — all under ISO 9001 certification.

ISO 9001 certified Quality accreditation

Have a part in mind for HPDC?

Send us your drawings and volumes and we'll come back with the right process and a quote.
